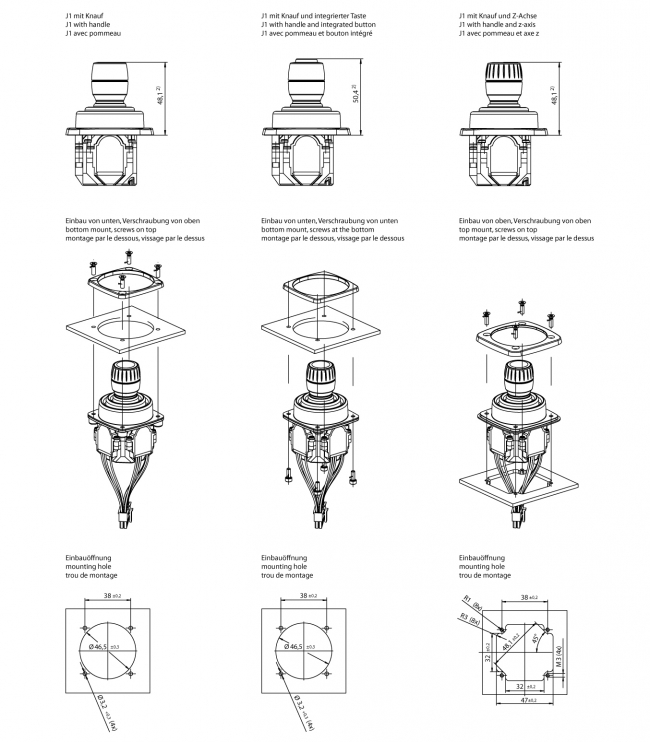

Small JOYSTICK 1
  • 제조원
  • : Elobau
  • 간단설명
  • : Small version J1


    The angular operating range is ±15°. The operating principle is noncontacting:
    – analogue: rotating magnetic field over hall-sensor

    Short circuit-proof with analogue version (short circuit duration: unlimited) toward power supply. J1 has a 16 PIN Molex connector (Micro Fit 3.0 housing 43025-1600).


    J1........ Product inquiry
    operating voltage 4,5–5,5 V DC
    output signal 0,5-4,5 VDC ratiom./propor.
    current consumption max. 10 mA
    load resistance > 20 kΩ
    centre position typ. 2,5 V
    reverse connection protected yes
    delay time of output signal approx. 3 ms
    temperature range -25..+85°C with push button switches or z-axis
    -40...+85°C without push button switches or z-axis
    protection class electronics IP67
