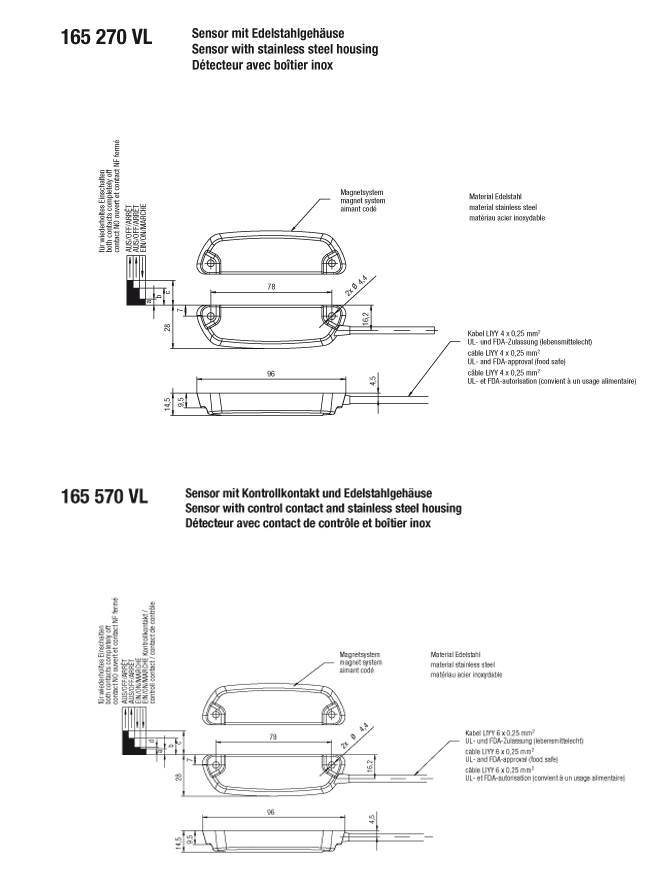

Stainless Steel housing
  • 제조원
  • : Elobau
  • 간단설명
  • : Sensor with (control contact and) stainless steel housing


    cable LIYY 6 x 0,25 mm2
    UL- and FDA-approval (food safe)




    UL- and FDA-approval (food safe)

    165270VL Product inquiry
    protection class IP 67/IP 69K
    control contact -
    temperature range -25°C...+80°C
    magnet system 30426112V
    air gaps for reliable switching function a = > 0,5 ≤ 4 mm, b = max. 11 mm, c = min. 16 mm
    air gaps for reliable switching function 30426112VS
    magnet system a = > 3 ≤ 7 mm, b = max.17 mm, c = min. 23 mm
